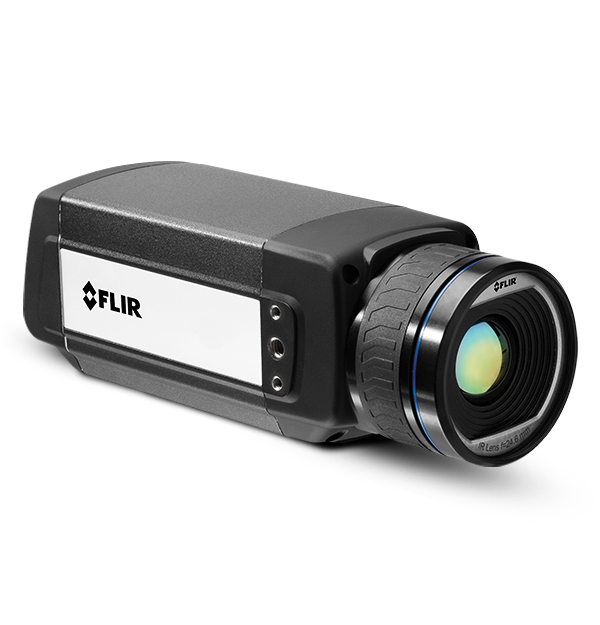

A655sc High Resolution Science Grade LWIR Camera

With its uncooled detector, high resolution, and all of the cutting-edge functionality scientists and researchers have come to expect from FLIR, the A655sc brings affordable research and science thermal imaging and measurement to a whole new level.

Features & Benefits:

Excellent Image Quality: The FLIR A655sc features a 640 x 480 pixel microbolometer that detects temperature differences down to <30 mK, for accuracy at longer distances
High-Speed Streaming: Streams full-frame 16-bit data at 50 Hz, or up to 200 Hz with windowing, for high-speed processes
GigE Vision Standard Compatibility: GigE Vision allows fast image transfer using low cost standard cables up to 100 meters

Specification & Models:

Resolution: 640 × 480
Detector Pitch: 17 µm
Spectral Range: 7.5 – 14.0 µm
Detector Type: Uncooled Microbolometer
Camera f_number: f/1.0
Dynamic Range: 16-bit
NETD: <30 mK
Frame Rate [Full Window]: 50 Hz
Max Frame Rate [at Min Window]: 200 Hz (640 × 120)
Standard Temperature Range: –40°C to 150°C (–40°F to 302°F) 100°C to 650°C (212°F to 1,202°F)
Optional Temperature Range: Up to 2,000°C (3,632°F )
Focus: Automatic or Manual (Motorized)
